The buildings are the most obvious  physical evidence of the generating station.  Yet, other features remain on and in the ground as important clues to the type and capacity of machinery.  The dimensions of the concrete mounts and the flywheel trough indicate a medium size reciprocating steam engine.  A broken pulley of approximately 12” diameter, unearthed on site is similar  in  design to those  used  on Edison-Hopkinson dynamos.

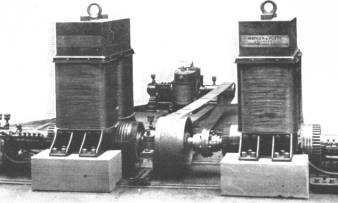

Edison-Hopkinson generating machines showing pulley



Two Edison-Hopkinson machines showing similar pulley





The Edison-Hopkinson dynamo was very popular and can be seen operating in the photograph of the ‘Stockwell’ generating station.  The steam engine was however, probably more of the size of that pictured at the Manchester Electric Lighting Works.





Pulley wheel recovered at Herstmonceux Museum



Cast iron dynamo pulley - 12" dia.



Cable ends on site appear to be of the lead sheathed, copper cored variety.  Underground cables must run between Lime Park and Herstmonceux village.



Diagram of small Edison-Hopkinson dynamo



Drawing of small Edison-Hopkinson dynamo



Inside the building, wiring was secured inside wooden conduit.  This wiring had waxed  cotton, or similar insulation.  Unfortunately, it was all replaced in the rewiring process.  Only a small sample of the wooden conduit remains.






Underground electricity cables



Lead encased subsoil cable ends
